Custom Products

Micro-Radian is a fully integrated manufacturer and maintains in-house design & development, machining, engineering, calibration, and production departments. This provides the flexibility and expertise to create solutions for your specialized requirements in an efficient and cost-effective way. Following are a few select customized autocollimators that Micro-Radian has manufactured to fit specific customer applications.

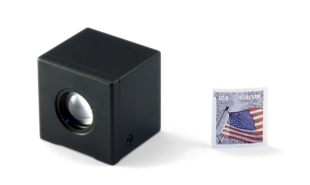

Ultra-Miniature Autocollimator

The ultra-miniature autocollimator was designed to meet a customer's stringent size and weight requirements for an OEM airborne system. The autocollimator also needed a large angular measuring range of ±2 degrees, and an electrically grounded housing. The autocollimator measures just 1.25 x 0.9 x 1.0 inches.



Miniature Wide Angle Autocollimator

The miniature wide angle autocollimator was designed to achieve an unrivaled measuring range of ±5 degrees in a compact, lightweight package. With an analog output of up to 4kHz, the instrument gives real-time feedback in a servo-controlled loop. The autocollimator measures 1.25 x 1.4 x 1.4 inches.
