Bench Top Digital Autocollimators
All Micro-Radian bench top autocollimators are designed for use with the Micro-Radian E3 controller. The autocollimator and controller are calibrated as a pair and require only a single AC outlet for operation. The E3 controller displays angle readings and provides user-adjustable settings through its touch-screen LCD. An RS-232 serial interface and analog outputs for each axis are provided by the controller.

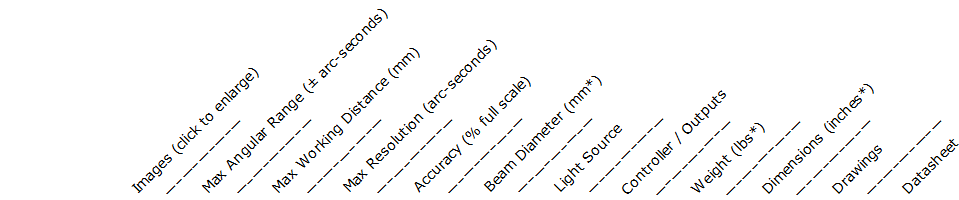

| E3 |  |
- | - | - | - | - | - | LCD, RS-232, analog |
6.2 | 10.4x8.2x5.4 | 1 | |
| T160HR |  |
300 | 1000 | 0.01 | 99.8 | 25 | LED | E3 | 1.2 | 7.4x1.7x1.7 | 1 2 |
T160HR |
| T160 | |
600 | 2000 | 0.01 | 99.8 | 25 | LED | E3 | 1.2 | 7.4x1.7x1.7 | 1 2 |
T160 |
| TL160 |  |
600 | 5000 | 0.01 | 99.2 | 10 | Laser | E3 | 1.7 | 9.0x1.7x1.7 | 1 2 |
TL160 |
| T100HR |  |
600 | 1000 | 0.01 | 99.8 | 25 | LED | E3 | 1.1 | 5.4x1.7x1.7 | 1 2 |
T100HR |
| T100 | |
1200 | 1000 | 0.01 | 99.8 | 25 | LED | E3 | 1.1 | 5.4x1.7x1.7 | 1 2 |
T100 |
| TL100 |  |
1200 | 2000 | 0.01 | 99.2 | 8 | Laser | E3 | 1.6 | 7.0x1.7x1.7 | 1 2 |
TL100 |
| T60 |  |
2500 | 500 | 0.01 | 99.96 | 16 | LED | E3 | 4.59oz | 3.4x1.2x1.2 | 1 2 |
T60 |
| T40 |  |
3600 | 150 | 0.1 | 99.8 | 16 | LED | E3 | 3.78oz | 2.4x1.2x1.2 | 1 2 |
T40 |
| TL40 |  |
3600 | 150 | 0.1 | 99.2 | 1 | Laser | E3 | 0.8 | 4.9x1.2x1.2 | 1 2 |
TL40 |
| T30 |  |
5400 | 100 | 0.1 | 99.8 | 16 | LED | E3 | 3.61oz | 2.2x1.2x1.2 | 1 2 |
T30 |
| T15 |  |
10800 | 25 | 0.1 | 99.8 | 7 | LED | E3 | 3.36oz | 2.0x1.2x1.2 | 1 2 |
T15 |
* Nominal
Max Angular Range
The maximum angular range is the maximum calibrated measurement range of an instrument. The maximum angular range will decrease as working distance increases. Autocollimators will provide an acquire range in excess of the maximum angular range.
Max Working Distance
The maximum working distance is the maximum recommended distance between the forward-most point of the autocollimator and the target reflector. Operation at the maximum working distance will limit the angular range to less than the maximum angular range.
Accuracy
Accuracy is the correlation of the autocollimator readings to a known standard and is given as a percentage of the maximum angular range (full scale).
