PC-Based Digital Autocollimators

PC-Based autocollimators are designed for use with a computer. No external controller is required. The standard interface is a single USB 2.0 connection for power input and data output. Micro-Radian PC-based autocollimators include a software driver for Windows XP, Vista, 7, 8 and 10, along with a LabView-based graphical user interface (GUI). Communication can also be done using a standard terminal program such as hyperterminal or docklight.

As always, all of our products can be customized to fit your specific application.

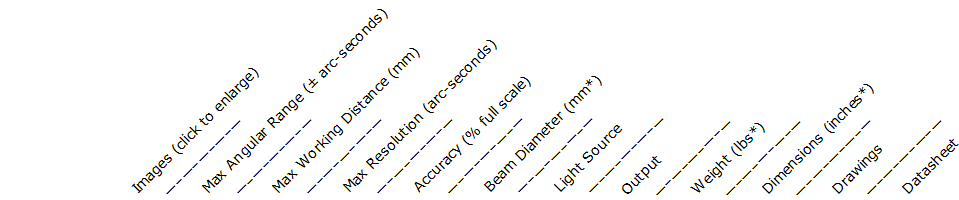

Header
T160HRD T160HRD 300 1000 0.01 99.5 25 LED USB 2.0 1.2 7.4x1.7x1.7 1
2
T160HRD
T160D T160D 600 2000 0.01 99.5 25 LED USB 2.0 1.2 7.4x1.7x1.7 1
2
T160D
TL160D TL160D 600 5000 0.01 99.2 10 Laser USB 2.0 1.7 9.0x1.7x1.7 1
2
TL160D
T100HRD T100HRD 600 1000 0.01 99.5 25 LED USB 2.0 1.1 5.4x1.7x1.7 1
2
T100HRD
T100D T100D 1200 1000 0.01 99.5 25 LED USB 2.0 1.1 5.4x1.7x1.7 1
2
T100D
TL100D TL100D 1200 2000 0.01 99.2 8 Laser USB 2.0 1.6 7.0x1.7x1.7 1
2
TL100D
T60D T60D 2500 500 0.01 99.8 16 LED USB 2.0 4.59oz 3.4x1.2x1.2 1
2
T60D
T40D T40D 3600 150 0.1 99.5 16 LED USB 2.0 3.78oz 2.4x1.2x1.2 1
2
T40D
TL40D TL40D 3600 150 0.1 99.2 1 Laser USB 2.0 0.8 4.9x1.2x1.2 1
2
TL40D
T30D T30D 5400 100 0.1 99.5 16 LED USB 2.0 3.61oz 2.2x1.2x1.2 1
2
T30D
T15D T15D 10800 25 0.1 99.5 5 LED USB 2.0 3.36oz 2.0x1.2x1.2 1
2
T15D

    * Nominal

Max Angular Range

The maximum angular range is the maximum calibrated measurement range of an instrument. The maximum angular range will decrease as working distance increases. Autocollimators will provide an acquire range in excess of the maximum angular range.

Max Working Distance

The maximum working distance is the maximum recommended distance between the forward-most point of the autocollimator and the target reflector. Operation at the maximum working distance will limit the angular range to less than the maximum angular range.

Accuracy

Accuracy is the correlation of the autocollimator readings to a known standard and is given as a percentage of the maximum angular range (full scale).

Output

The standard output is USB 2.0. Optional RS-232 or analog outputs are available.
